What is OCTG? It includes Drill Pipe, Steel Casing Pipe and Tubing

OCTG is the abbreviation of Oil Country Tubular Goods, it mainly refers to the piping products that are applied in oil and gas production (drilling activities). OCTG pipe is normally manufactured based on API or related standard specifications. It could also be taken as a collective name for Drill pipe, Steel Casing Pipe and Tubing pipe, Couplings, Connections, and Accessories, used in petroleum industries both onshore and offshore.

According to the API (American Petroleum Institute) standardized specifications, through the control of the chemical properties and adopting different heat treatments, OCTG pipe is classified into different performances material with more than ten grades.

Types of Oil Country Tubular Goods (OCTG pipes)

There are three main types of Oil Country Tubular Goods, which include Drill pipe, Casing pipe, and Tubing pipe.

To give you a better understanding, we will explain the meaning of each of the three to help you understand their work and their use.

OCTG Drill pipe – Pipe for Drilling

Drill pipe is a heavy, seamless tube that rotates the drill bit and circulates drilling fluid. It allows the drilling fluid to be pumped through the bit and back up the annulus. The pipe can withstand axial tension, extremely high torque and high internal pressure. That is why the pipe is extremely strong and vital in OCTG endeavour.

Drill Pipe normally means the Durable steel pipe used in drilling, standards in API 5DP and API SPEC 7-1.

If you don’t understand the annulus of oil well, it is the space between the casing and the piping or any piping tubing, casing or piping immediately surrounding it. Annulus allows the fluid to circulate in the well. So when we are talking about strong or heavy-duty OCTG pipe, we are talking about Drill pipe.

Steel Casing pipe – Stabilize the wellbore

Steel casing pipes are used to line the borehole that is being dug into the ground to get oil. Just like the drill pipe, the steel pipe casing can also withstand axial tension. This is a large-diameter pipe inserted into a drilled borehole and held into place with cement. The casing is subject to the axial tension of its dead weight, the external pressure of the rock surrounding it, and the internal pressure of the purging fluid. When it is well cemented in place, the drilling process is aided in the following ways:

· Casing sticks the drill string and prevents unstable upper formation from caving in.
· It prevents water well zone contamination.
· It allows a smooth internal bore for installing production equipment
· It prevents contamination of production zones and fluid loss.
· It seals off high-pressure zone from the surface
· And much more

The casing is an extremely heavy-duty pipe vital to OCTG.

OCTG Casing Pipe standard

Steel Casing pipe standards usually referred to API 5CT, Common Grades in J55/K55, N80, L80, C90, T95, P110 etc. Common length in R3 which nominal at 40 ft / 12 meters. Casing pipe ends connection types are usually in BTC and LTC, STC. And premium connections are also required in large quantities in an oil and gas piping project.

Steel Well Casing Pipe Price

Steel Casing Pipe cost is lower than drill pipe or the OCTG tubing cost, it is usually higher 200 USD than the regular API 5L pipe. Considering the Threading + Coupling cost or the heating treatment.

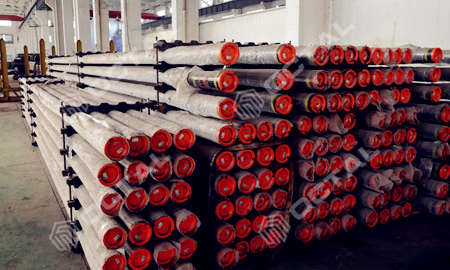

OCTG Tubing Pipe – Transporting Oil and Gas to the Surface Ground

OCTG Tubing pipe goes inside the casing pipe because it is the pipe through which oil makes its way out. Tubing is the simplest part of OCTG and it is normally found in the segment of 30 ft (9 m), with threaded connections at both ends. The pipe is either used to transport natural gas or crude oil from the producing formation to the facilities where it will be processed after drilling is complete.

This tubing must be able to withstand pressure during the extraction process and adequately resist loads and deformations that have to do with production and workovers. Just like casing is manufactured, tubing is also manufactured the same way, but an additional upsetting process is applied to make it thicker.

OCTG Tubing pipe standard

Same as casing pipe standard, OCTG tubing in API 5CT is also in the same material grades (J55/K55, N80, L80, P110 etc), but the tubing’s diameters are up to 4 1/2”, and it ends in various types such as BTC, EUE, NUE, and premium. Most commonly, thickened connections EUE.

How steel casing pipe and tubing work together

OCTG pipe Casing and Tubing Specifications

Casing and Tubing Chemical composition in API 5CT
API 5CT Casing and Tubing Data Sheet Download

Mechanical Properties Tensile Strength and Yield Strength

Features for OCTG pipe

All OCTG pipes have a standard requirement of dependable hardness. So, whether it is OCTG tubing, OCTG pipe or OCTG drill pipe, there is a certain required standard that is always about super hardness. To meet the standard, manganese and chromium are used as the main alloys to confirm cohesion and durability.

There has been recent developments to eliminate sulfide stress cracking, which is the major problem with manganese and chromium. Alloy and Molybdenum are blended together to overcome the chromium and manganese limitations. So OCTG pipes are now harder than ever, and the fear of sulfide stress cracking has been eliminated.
