Nickel Alloy Pipes and Fittings to Spain

Project Category
Recent Projects
Contact Now !

    Nickel alloy pipes and fittings are piping components manufactured from nickel-based alloys for service requiring elevated-temperature strength, oxidation resistance, and corrosion resistance. For this order, the material was UNS N06617, a nickel-chromium-cobalt-molybdenum alloy containing nickel as the balance, approximately 20.0–24.0% chromium, 10.0–15.0% cobalt, 8.0–10.0% molybdenum, and 0.8–1.5% aluminum. These components are used in high-temperature petrochemical, furnace, and power-generation piping systems.

    Octal Steel supplied the UNS N06617 pipes, matching fittings, and customized accessories to Spain by air freight. The low-volume order included 6.35 mm and 12.7 mm outside diameters with a specified 1.24 mm wall thickness. Production and release were based on the purchase order and approved drawings, with control of material identity, dimensional accuracy, end geometry, and pipe-to-fitting compatibility.

    Order Details

    Order Item Project Requirement
    Products Pipes, pipe fittings and customized accessories
    Material designation UNS N06617
    Outside diameter 6.35 mm and 12.7 mm
    Wall thickness 1.24 mm
    Order type Low-volume, custom-made
    Manufacturing basis Purchase order and approved drawings
    Destination Spain
    Shipping method Air freight

    The 6.35 mm UNS N06617 pipe fittings and 12.7 mm UNS N06617 pipe fittings were supplied together with matching pipe sections and project-specific accessories. Because the order involved small dimensions and customized interfaces, the supplied items had to remain consistent in outside diameter, wall thickness, end geometry and connection position.

    Small-Diameter UNS N06617 Pipes and Fittings

    The order included two principal outside-diameter groups:

    Product Size Approximate Inch Size Specified Wall Thickness Supply Scope
    6.35 mm OD 1/4 in 1.24 mm Pipes, matching fittings and customized accessories
    12.7 mm OD 1/2 in 1.24 mm Pipes, matching fittings and customized accessories

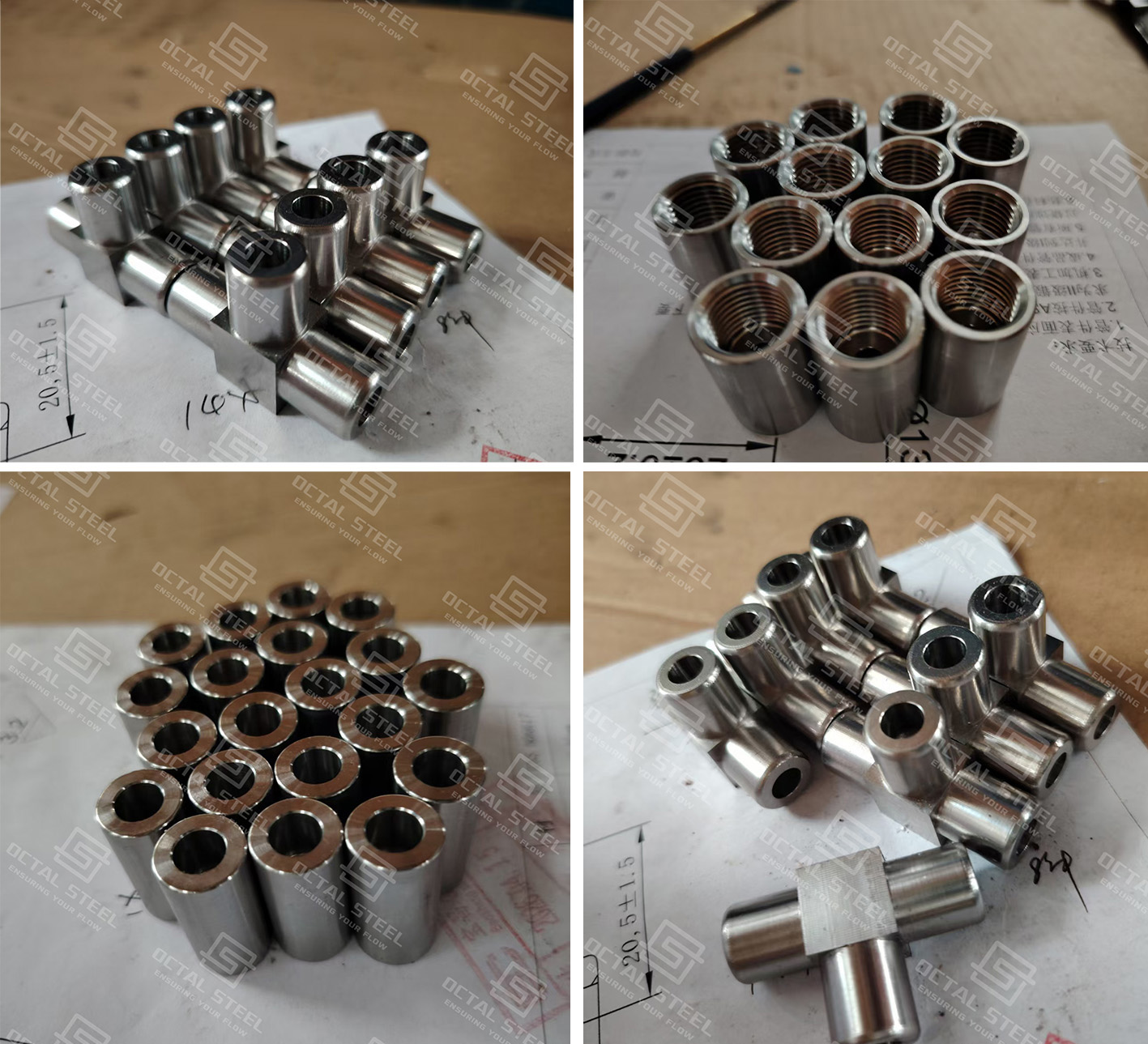

    The 6.35 mm UNS N06617 pipe fittings were produced for the smaller pipe configuration, where dimensional deviation can directly affect alignment and assembly. Even a small difference between the pipe outside diameter and fitting interface can create installation difficulty in a compact piping arrangement.

    The 12.7 mm UNS N06617 pipe fittings required the same dimensional coordination. The fittings and accessories were not treated as separate catalogue items; they were reviewed as matching parts of the same order.

    The specified 1.24 mm wall thickness UNS N06617 pipe also required careful control during cutting, end preparation and handling. For small-diameter components, excessive machining, deformation or edge damage can affect the usable bore and the final connection geometry.

    UNS N06617 Nickel Alloy Pipes and Fittings

    UNS N06617 nickel alloy pipes and fittings are manufactured from a nickel-chromium-cobalt-molybdenum alloy developed for applications requiring retained mechanical strength, oxidation resistance and corrosion resistance at elevated temperatures. The material designation identifies the alloy chemistry, while the applicable pipe, fitting, dimensional and testing requirements must be defined separately in the purchase order, product standard or approved drawing.

    The alloy contains substantial nickel and chromium, together with cobalt, molybdenum and aluminum. Chromium and aluminum support the formation of protective oxide scales at elevated temperature, while cobalt and molybdenum contribute to high-temperature strength and resistance in a range of corrosive environments. For seamless pipe and tube, ASTM B167 includes UNS N06617 among the covered nickel-alloy grades; factory-made wrought nickel-alloy fittings may be specified under ASTM B366/B366M when that standard is stated in the order.

    This shipment included 6.35 mm and 12.7 mm OD pipes, matching pipe fittings and customized accessories, with a specified wall thickness of 1.24 mm. Because the key requirement was low-volume, custom-made production, final acceptance was based on the purchase order and approved component drawings, including material identity, outside diameter, wall thickness, end geometry and dimensional compatibility between the pipes and fittings. The allowable operating temperature and pressure cannot be selected from the UNS grade alone; they must be confirmed against component geometry, fabrication condition, process atmosphere, loading, joining method and the applicable piping design code.

    Material and Dimensional Verification

    The order identified UNS N06617 as the required material designation for the pipes, pipe fittings and customized accessories. The material identity had to remain traceable across the low-volume production batch and the final shipment package.

    Before dispatch, the order was reviewed against the purchase specification and approved drawings, with particular attention to:

    • Material designation and corresponding item records
    • 6.35 mm and 12.7 mm outside diameters
    • Specified 1.24 mm wall thickness
    • Fitting and pipe dimensional compatibility
    • End preparation and edge condition
    • Customized accessory geometry
    • Quantity and item identification
    • Surface condition before packing
    • Packing-list consistency

    The dimensional review was especially important for the customized UNS N06617 pipe accessories. Unlike standard fittings selected only by nominal size, custom accessories may include project-specific lengths, transitions, end forms or positioning requirements. These details must match the approved drawing before the item is released.

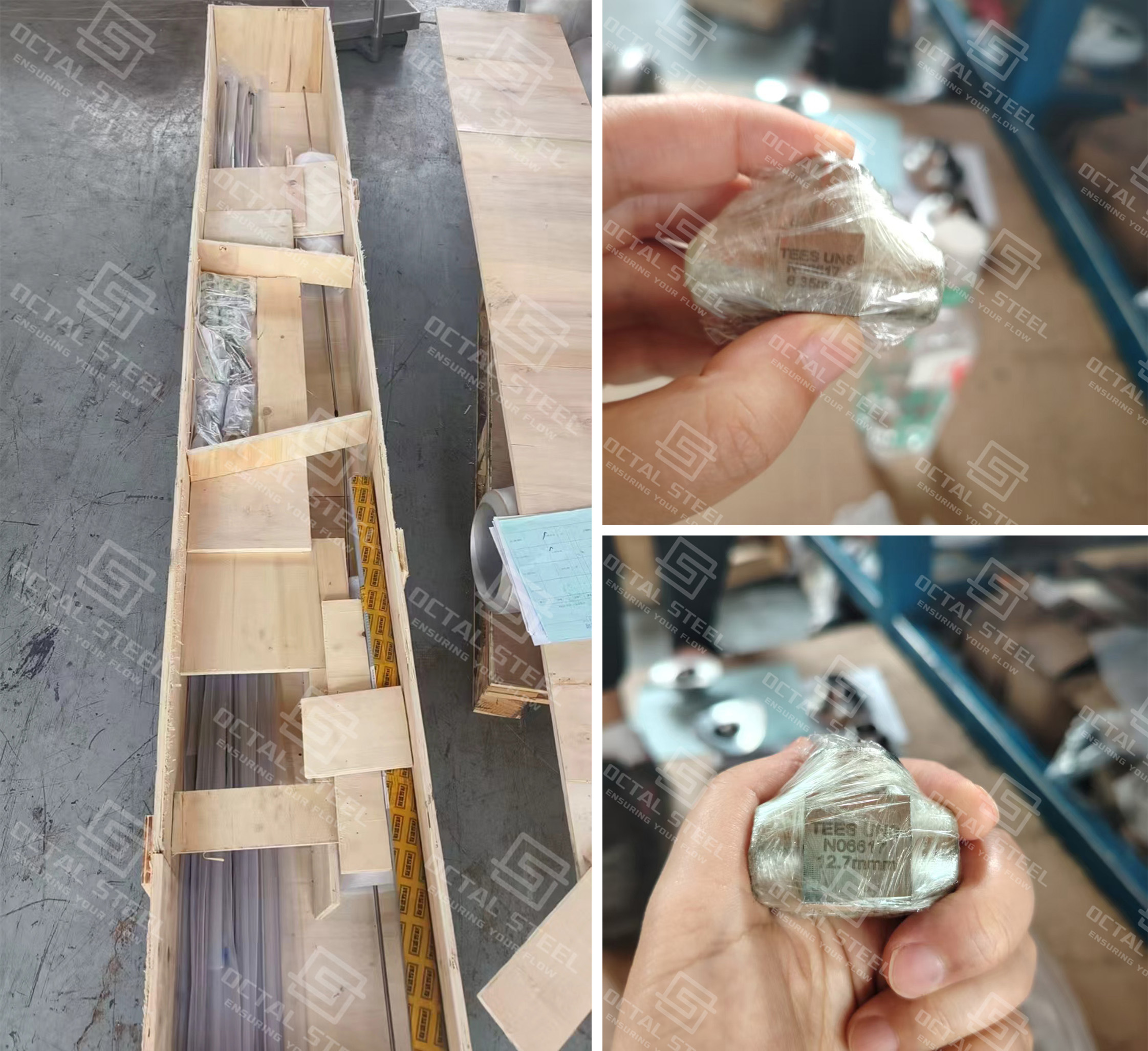

    Air-Freight Packing for Spain

    Because the shipment was sent to Spain by air freight, the packing arrangement had to protect small-diameter pipes and customized parts while keeping the package compact and clearly identified.

    The pipes, fittings and accessories were separated by product type and size. The packing arrangement was prepared to prevent:

    • Mixing of the 6.35 mm and 12.7 mm components
    • Bending or crushing of small-diameter pipe sections
    • Contact damage between fittings and accessories
    • Loss of small customized items during handling
    • Confusion between drawing numbers or item descriptions

    Labels and packing records were coordinated with the shipment list so that the receiving team could identify the 6.35 mm UNS N06617 pipe fittings, 12.7 mm UNS N06617 pipe fittings and matching customized accessories without opening or sorting every package.

    Air freight was selected for this low-volume order to support a shorter transportation cycle and direct delivery to the customer in Spain.

    Supporting Custom Alloy Piping Projects with Coordinated Delivery

    This Spain shipment demonstrates Octal Steel’s ability to manage a custom nickel alloy pipes and fittings order where material identification, small-diameter dimensional control, approved drawings, item marking and air-freight documentation must remain consistent before dispatch. For this low-volume UNS N06617 order, delivery control covered not only the pipes, fittings and customized accessories, but also the matching of 6.35 mm and 12.7 mm OD components, 1.24 mm wall thickness, package identification, packing-list details and shipment records within one traceable document chain.
