Conductor Pipe

What is Conductor Pipe

Conductor pipe (also referred to as structural casing or surface casing) is the first and most critical casing string installed during offshore oil and gas drilling. Its role extends beyond simply penetrating the seabed: it establishes the mechanical stability of unconsolidated formations, isolates seawater zones, and creates a circulation path for drilling fluids. Most importantly, conductor pipe serves as the foundation for the entire wellhead system, ensuring both the safety and long-term integrity of offshore wells.

In offshore engineering, this initial casing string is the interface between marine conditions and the well structure. By anchoring subsequent casing strings and supporting heavy platform loads, conductor pipes make possible the reliable construction of wells in environments ranging from shallow continental shelves to ultra-deep waters exceeding 1,960 meters. Modern conductor pipe systems are engineered with modular designs, advanced connector technologies, and rigorous testing protocols, enabling them to withstand both static and dynamic offshore stresses throughout their design life.

Key Functions of Conductor Pipe

Conductor pipe plays multiple structural and operational roles that are indispensable for offshore well construction:

1. Seawater Isolation
   Prevents seawater intrusion into the well-bore.
   Maintains drilling fluid density and circulation efficiency.
   Protects against dilution of mud properties in shallow formations.

2. Load-Bearing Capacity
   Supports the cumulative weight of the drilling platform, risers, and subsequent casing strings.
   Transfers axial loads and resists bending moments induced by waves, currents, and platform motion.
   Provides structural integrity for wellhead assemblies under cyclic loading.

3. Well-bore Stability
   Stabilizes unconsolidated sediments near the seabed.
   Prevents collapse of upper formations before intermediate casing is installed.
   Functions as the “structural skeleton” for the well.

4. Foundation for Wellhead and Sub sea Equipment
   Provides a secure base for sub sea wellheads, blowout preventers (BOPs), and production trees.
   Ensures long-term reliability of sub sea installations by maintaining alignment and load distribution.

Engineering Example: Offshore platforms such as the Sea Swift modular platform demonstrate the structural importance of conductor pipe. These systems have shown the capability to support >400 tons of axial and lateral loads while maintaining a design service life of over 25 years, highlighting conductor pipe’s indispensable role in offshore well design.

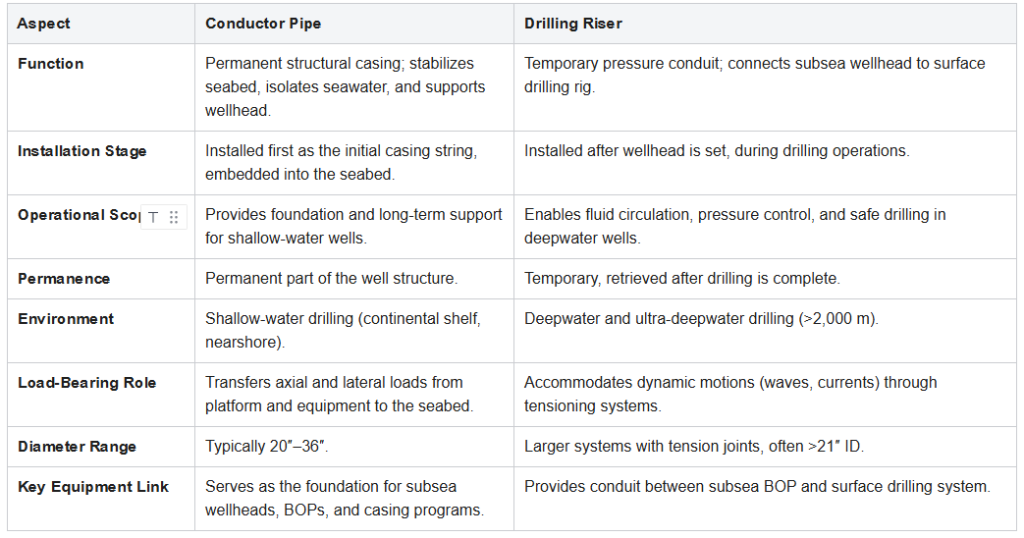

Difference between Conductor Pipe and Drilling Riser

Although conductor pipes and drilling risers are both large-diameter tubular systems used in offshore wells, they serve distinct roles:

• Conductor Pipe: Installed at the seabed as the first casing string, primarily used in shallow-water operations. It provides structural foundation, load transfer, and well-bore stability.

• Drilling Riser: A temporary conduit connecting the sub sea wellhead to the surface drilling platform, primarily used in deep-water operations. It enables safe circulation of drilling fluids and pressure control during drilling.

Together, conductor pipes and drilling risers form a complementary system: the former establishes the foundation at the seabed, while the latter extends operational control from the seabed to the surface in deeper waters.

For conductor pipe offshore scopes, conductor pipe oil and gas procurement is often released at the yard only when each lot arrives with matching MTC/NDT and dimensional records, avoiding hold points before running the string.

Complementary Roles

• Conductor Pipe ensures the structural foundation of the well at the seabed.
• Drilling Riser extends operational control to the surface, enabling circulation and pressure management in deep-water. Together, they form a dual support system: one anchors the well, the other enables safe and efficient drilling.

Manufacturing Standards and Capabilities

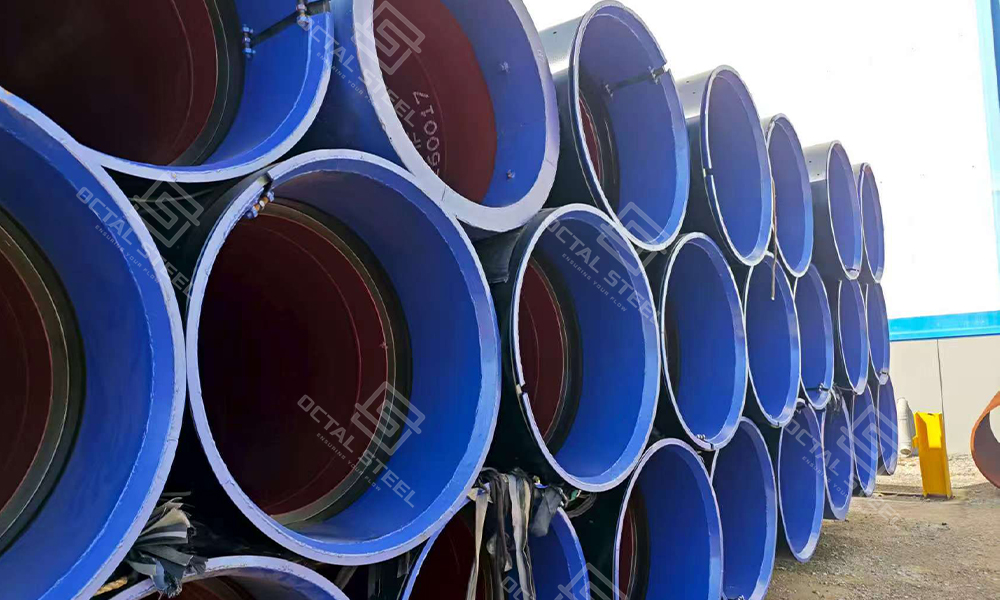

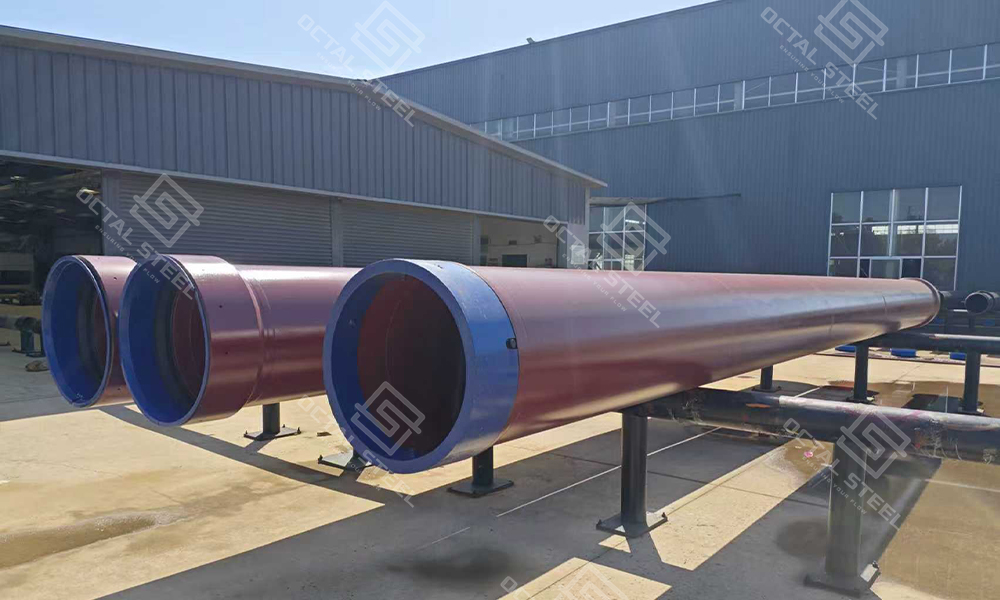

Octal Steel supplies large-diameter conductor pipes with sizes ranging from 20″ to 36″, tailored to both shallow-water and frontier offshore projects. These conductor casing sizes are typically selected from the drilling program and seabed conditions, linking diameter and wall thickness to foundation loads and installation method. Conductor pipe materials are chosen for weldability, fatigue resistance, and seawater corrosion exposure in offshore environments.

• Material Selection
  Carbon-manganese steels for structural strength.
  Low-alloy steels with enhanced weld-ability and fatigue resistance.
  Optional corrosion-resistant coatings for long-term durability.

• Fabrication Process
  Precision rolling and longitudinal welding.
  Heat treatment for controlled micro-structure.
  Advanced machining to achieve strict tolerances.

• Standards Compliance
  API, ISO, and DNV requirements for offshore well construction.
  Conformity with international NDT protocols for weld and body inspection.

conductor pipe specifications

Conductor pipe specifications for offshore drilling commonly define diameter and wall thickness range, length, manufacturing route (rolled and welded), and dimensional tolerances required for wellhead fit-up. Typical specification scope includes OD/WT range, straightness and ovality limits, end preparation, connector type, coating requirements, NDT scope, and documentation (MTC and inspection/test records).

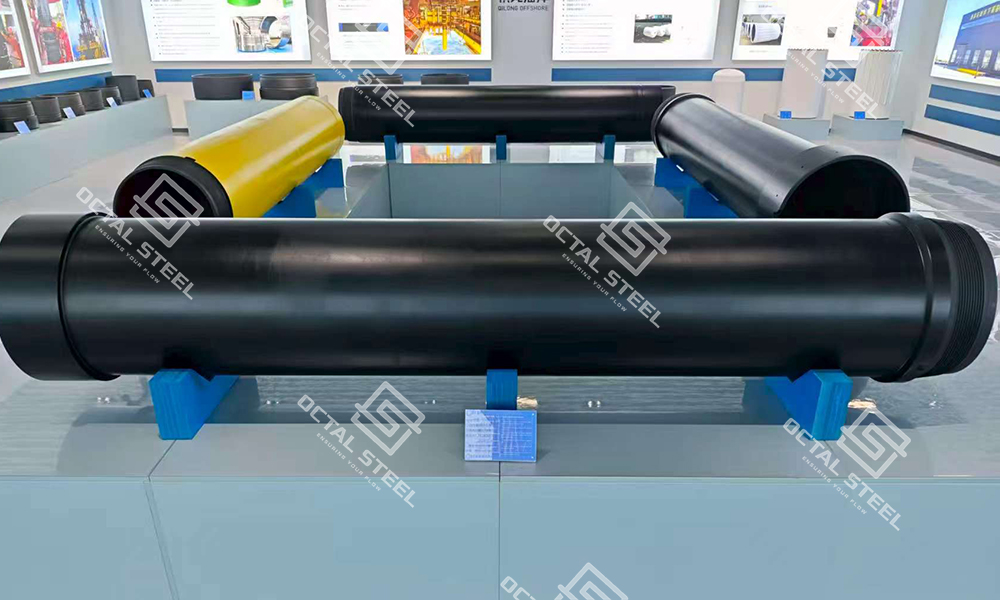

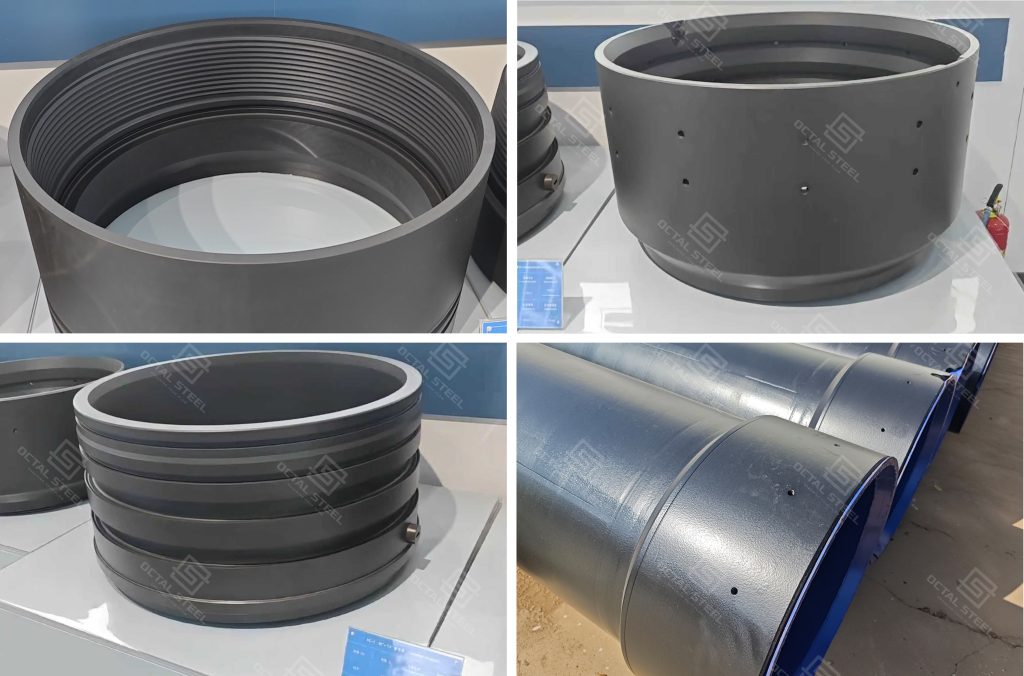

Connection Technologies

The efficiency and safety of conductor pipe installation largely depend on its connection system. Octal Steel offers three primary options:

1. Quick Connectors (Preferred)

   Designed for rapid make-up and break-out.
   Reduce rig time by up to 30%.
   Provide reliable mechanical strength and sealing integrity.

2. BTC (Buttress Threaded & Coupled)

   A cost-effective, conventional solution.
   Offers proven reliability in moderate offshore conditions.

3. Premium Connections

   Engineered for HPHT (high pressure, high temperature) wells.
   Deliver gas-tight sealing and extreme load resistance.
   Suitable for complex and deep-water environments.

Each connector type is validated for tensile strength, bending resistance, fatigue performance, and sealing integrity under marine environmental simulations.

Design and Handling Features

• Pin & Box connectors with metal thread protectors for secure transport and storage.

• Plastic O-rings to enhance sealing reliability and corrosion resistance.

• Integrated lifting eyes for safe offshore handling.

• Custom connector solutions engineered for specific project conditions.

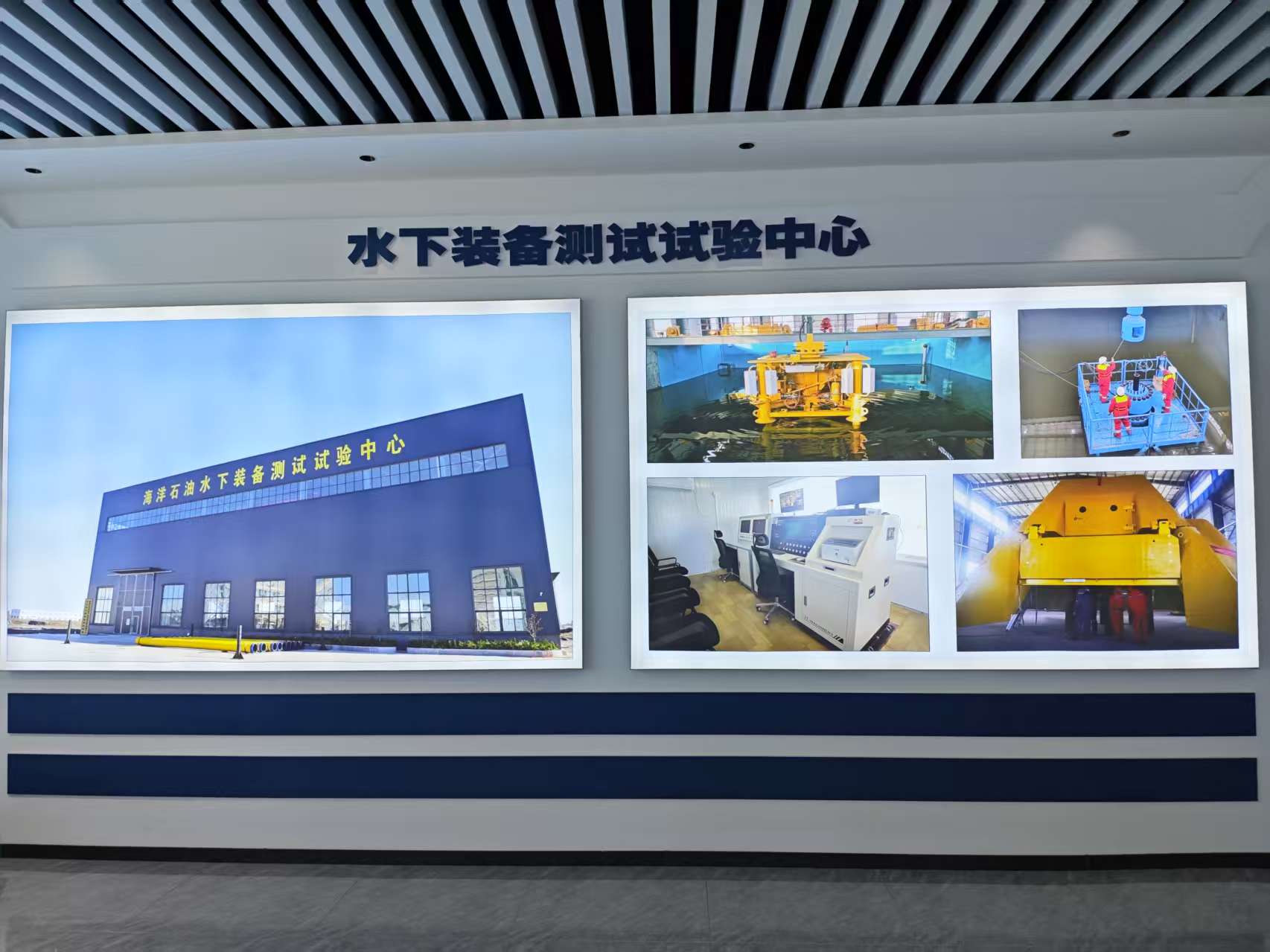

Quality Control and Testing

Every conductor pipe undergoes a multi-stage inspection and validation process:

• Non-Destructive Testing (NDT): ultrasonic, radio-graphic, and magnetic particle testing on welds and pipe body.

• Dimensional Verification: precision measurements for straightness, wall thickness, and roundness.

• Simulated Marine Testing: accelerated corrosion and fatigue testing in artificial seawater and cyclic load environments.

These quality protocols guarantee compliance with international offshore safety requirements.

Applications of Conductor Pipe

Typical conductor pipe applications in offshore oil and gas drilling include:

For conductor pipe offshore scopes, conductor pipe oil and gas teams typically care less about slogans and more about predictable release—traceable lots and inspection documentation that keeps the wellhead foundation schedule from slipping.

• Shallow-water platforms (jack-ups, modular structures).

• Fixed offshore installations requiring structural load transfer.

• Initial casing for sub-sea wellhead systems.

• Marine drilling programs where seabed stability and seawater isolation are critical.

Conclusion

Conductor pipe is the first barrier, structural skeleton, and foundation of offshore wells. Its importance lies not only in providing immediate well-bore stability but also in ensuring the long-term integrity of sub sea wellhead systems. With diameters up to 36″, advanced connector technologies, and strict quality assurance, Octal Steel delivers conductor pipe solutions that meet the toughest requirements of offshore oil and gas development.

For projects in shallow-water environments, conductor pipe is indispensable. For deep-water operations, conductor pipe works in tandem with drilling risers to ensure safe, efficient, and reliable well construction.

On offshore conductor pipe packages, procurement usually fails in the small details—OD/WT tolerance not matching the driving/jetted plan, connector/end prep inconsistent across lots, or NDT and traceability arriving late and blocking release. OCTAL runs conductor pipe supply as a controlled package rather than a loose shipment: the sizing range, wall schedule, end preparation, coating scope, and required documents are confirmed against the drilling program before production release, so what arrives on site matches the installation method and acceptance checklist. During manufacture, the focus stays on what changes offshore outcomes—dimensional consistency for fit-up, stable weld quality, and verification records that can be signed off without back-and-forth. A typical case is a multi-lot 30″–36″ conductor pipe order where mixed heats and missing inspection records can force re-checks and hold points at the yard; with a factory-controlled route, the factory inspection package is built lot-by-lot (MTC, dimensional reports, and NDT results) and shipped with the pipes, so the receiving team can clear IQC quickly and avoid schedule slip before conductor running. The result is less rework at the seabed section, fewer installation interruptions caused by document gaps, and a cleaner handover to the next casing strings and wellhead foundation activities.

FAQ

Q1: What is conductor in offshore platform?
A1: The conductor is the first large-diameter casing installed at the seabed to stabilize the upper formations, isolate seawater zones, and provide the structural base for the wellhead and subsequent casing strings.

Q2: What are common conductor casing sizes for offshore wells?
A2: Common conductor casing sizes are typically large-diameter strings selected from the drilling program and seabed conditions; many offshore projects specify conductor pipe in the 20”–36” range, with wall thickness defined by axial/lateral loads, soil capacity, and installation method.

Q3: What are typical conductor pipe specifications for offshore oil and gas projects?
A3: Typical conductor pipe specifications define OD/WT range, length, manufacturing route (rolled and welded), straightness/ovality limits, end preparation or connector type, coating requirements for seawater exposure, NDT coverage, and the required documentation package such as MTC and inspection/test records.

Q4: What are the main conductor pipe applications in offshore drilling?
A4: Conductor pipe applications include stabilizing the seabed section, providing the structural foundation for the wellhead system, isolating seawater and weak formations in the upper hole, and enabling safe installation of subsequent casing strings during early offshore drilling operations.
